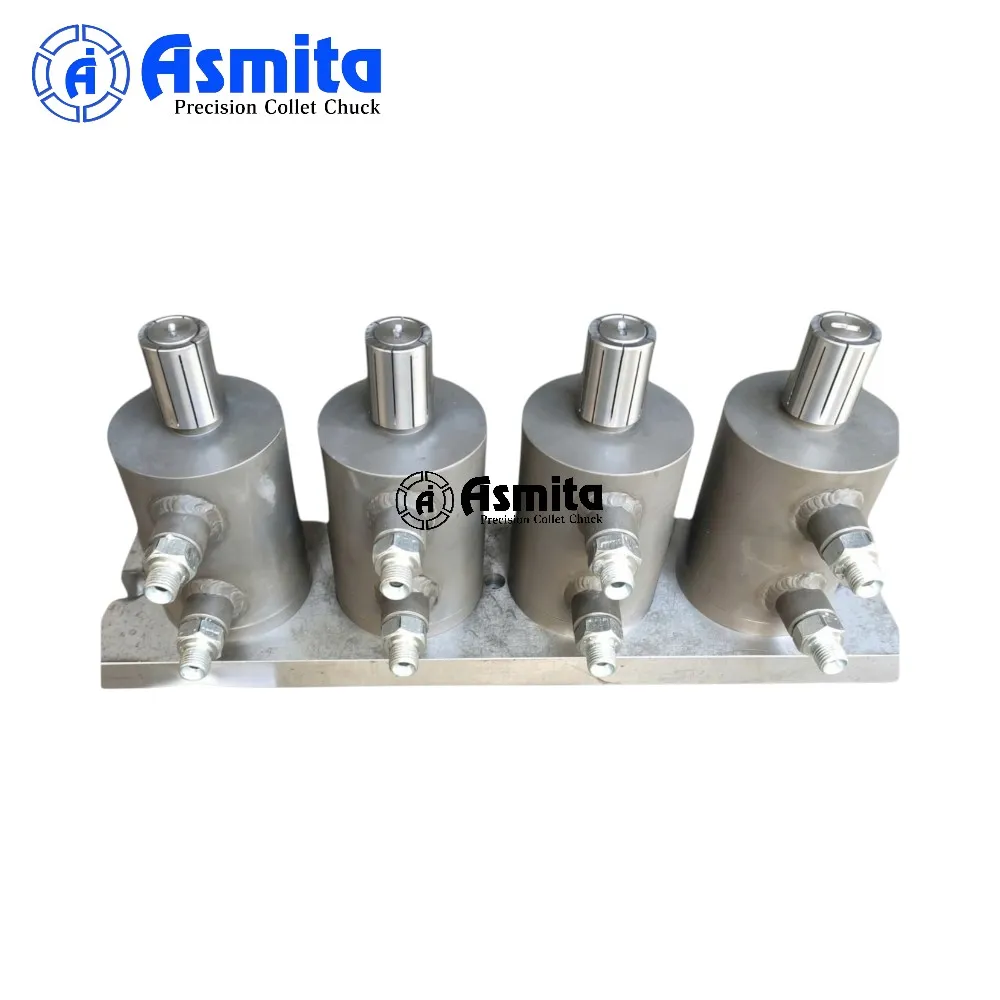

VMC Hydraulic Multiple Clamping Fixture is a custom-engineered hydraulic workholding solution designed to clamp multiple components simultaneously on a Vertical Machining Center (VMC). By using hydraulic cylinders and precision locators, the fixture delivers very high and uniform clamping force, enabling heavier cuts, better accuracy, and shorter cycle times compared to pneumatic systems.
Ideal for mass production, tough materials, and automation-ready CNC environments, this fixture maximizes spindle utilization and ensures part-to-part consistency.
🔑 Key Features
- 💧 Hydraulic Clamping (High & Consistent Force)
- 🧩 Multiple Components per Cycle (2 / 4 / 6 / 8+)
- 🎯 High Accuracy & Repeatability
- 🔩 Uniform Clamping on All Stations
- ⚙️ Designed Specifically for VMC Tables
- 🛠️ Robust Fixture Body – Hardened & Ground Wear Parts
- 🔄 Fast Clamp–Unclamp (Automation Ready)
- 🔧 Long Service Life, Low Maintenance
🧱 Fixture Design Concept
- Base Plate: Precision-machined fixture plate aligned to VMC T-slots
- Locating Elements: Rest pads, dowels, and stops for repeatable positioning
- Clamping Units: Hydraulic cylinders / swing clamps / collet modules
- Hydraulic Circuit: Parallel or zoned circuits for simultaneous/sequential clamping
- Safety: Pressure monitoring & part-present logic (optional)
📐 Design & Mounting Reference
Each fixture is 100% custom-designed based on:
|
Parameter
|
Details
|
|
VMC Table
|
Size, T-slot spacing, load capacity
|
|
Component
|
Size, material, machining faces
|
|
Quantity
|
Parts per cycle (productivity target)
|
|
Operations
|
Milling, drilling, tapping, boring
|
|
Clamping
|
Top/side clamping, collet, swing clamp
|
|
Pressure
|
Typically 20–35 bar (hydraulic)
|
✔ 2D layout & 3D model shared for approval
✔ Designed to avoid tool interference & chip trapping
⚙️ Operating Parameters
- Hydraulic pressure: 20–35 bar
- Clamping mode: Simultaneous or sequential
- Repeatability: ≤ 0.01 mm
- Control: Hydraulic power pack + solenoid / PLC / CNC M-code
- Environment: Coolant & chip resistant
🏭 Applications
- Automotive & auto-ancillary components
- Heavy-duty machining of steel/alloys
- Batch & mass production on VMC
- Drilling, tapping, milling & boring operations
- CNC automation & lights-out manufacturing
⭐ Why Choose a Hydraulic Multiple Clamping Fixture for VMC?
✔ Machine more parts per cycle
✔ Higher clamping force for aggressive cuts
✔ Improved accuracy & surface finish
✔ Reduced operator dependency
✔ Shorter cycle time & higher ROI
