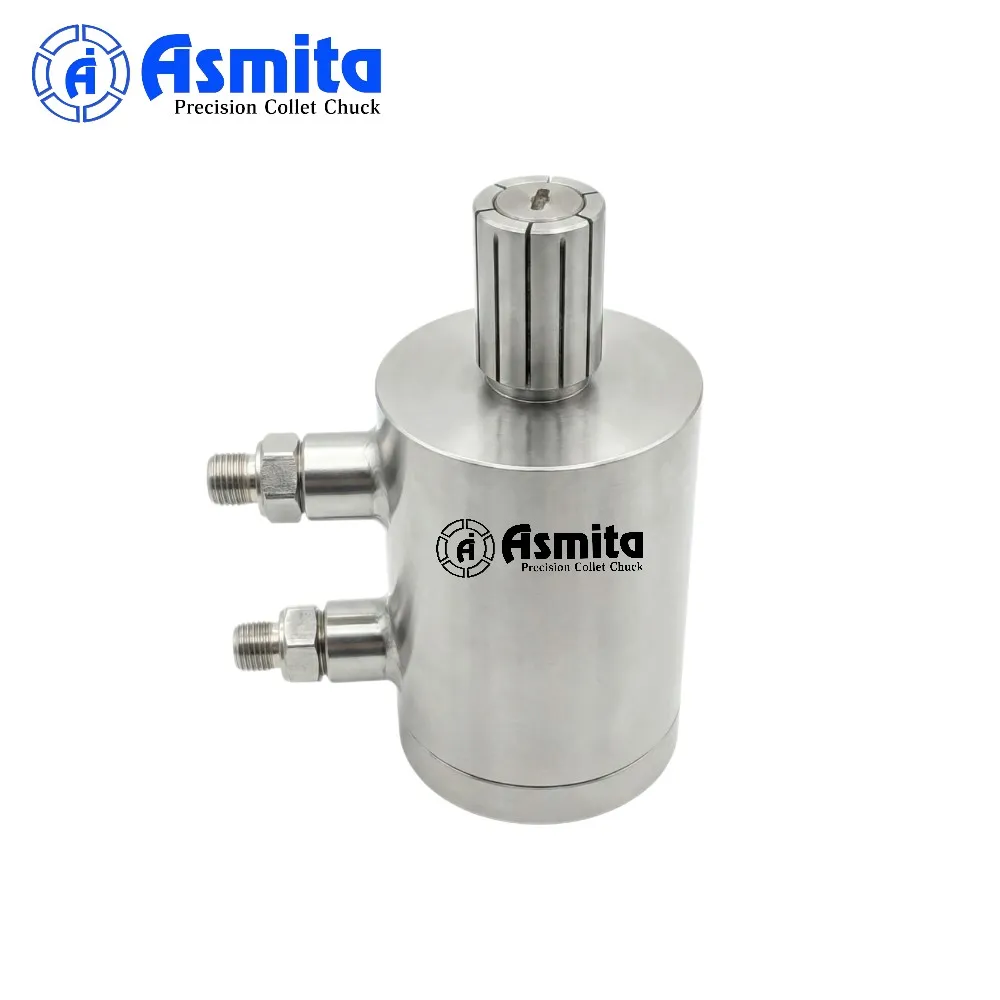

A Hydraulic Stationary Expanding Collet Chuck is a non-rotating, hydraulically actuated internal workholding system that clamps components from the inside diameter with high and consistent force. Its dead-length design ensures zero axial movement, providing excellent concentricity and distortion-free holding, making it ideal for thin-wall rings, sleeves, bushes, and bearing housings in CNC stationary operations, SPMs, transfer lines, and automated production cells.
Hydraulic Stationary Expanding Collet Chuck is a non-rotating, hydraulically actuated internal clamping system designed to grip components from the inside diameter (ID) with very high and consistent force. Its dead-length design guarantees zero axial movement during clamping, delivering outstanding concentricity and distortion-free holding—ideal for thin-wall rings, sleeves, bushes, and bearing housings.
Best suited for CNC stationary operations, SPMs, transfer lines, and automated cells where rigidity and repeatability are critical.
Key Features
Dimension Reference – Hydraulic Stationary Expanding Collet Chuck
Dimension Legend
|
Symbol |
Description |
|
A |
Chuck outer diameter |
|
B |
Mounting face diameter |
|
C |
Expanding collet bore (ID clamping range) |
|
D |
Front face thickness |
|
E |
Chuck body length |
|
F |
Expansion stroke |
|
G |
Rear pilot / register |
|
H |
Overall length |
|
I (PCD) |
Mounting pitch circle diameter |
|
J |
Mounting bolt size |
✔ Front & sectional drawings (PDF/DWG) supplied
✔ PCD, pilot diameter & expansion stroke customizable
Typical Capacity (Reference)
|
Model |
ID Clamping Range |
Operating Pressure |
Mounting |
|
HSE-25 |
up to 25 mm |
20–35 bar |
Flange / Backplate |
|
HSE-42 |
up to 42 mm |
20–35 bar |
Flange / Backplate |
|
HSE-60 |
up to 60 mm |
20–35 bar |
Flange / Backplate |
(Exact dimensions depend on component geometry and application.)
Operating Parameters
Applications
Why Choose Hydraulic Stationary Expanding Collet Chuck?
✔ Internal grip without OD deformation
✔ Zero axial movement for consistent length control
✔ Higher rigidity & grip than pneumatic systems
✔ Excellent concentricity & surface finish
✔ Ideal for automation and mass production
Have questions about a specific product? Our team will help you find the right option for your needs — ensuring compatibility, quality, and value.
