A Mini Air Collet Chuck is a compact, air-operated workholding solution designed for small-diameter components and precision machining. It provides fast clamp–unclamp cycles, uniform gripping, and excellent repeatability, making it ideal for CNC lathes, bench machines, SPMs, and automation stations handling micro parts, medical, electronic, and fine engineering components.
Product Overview

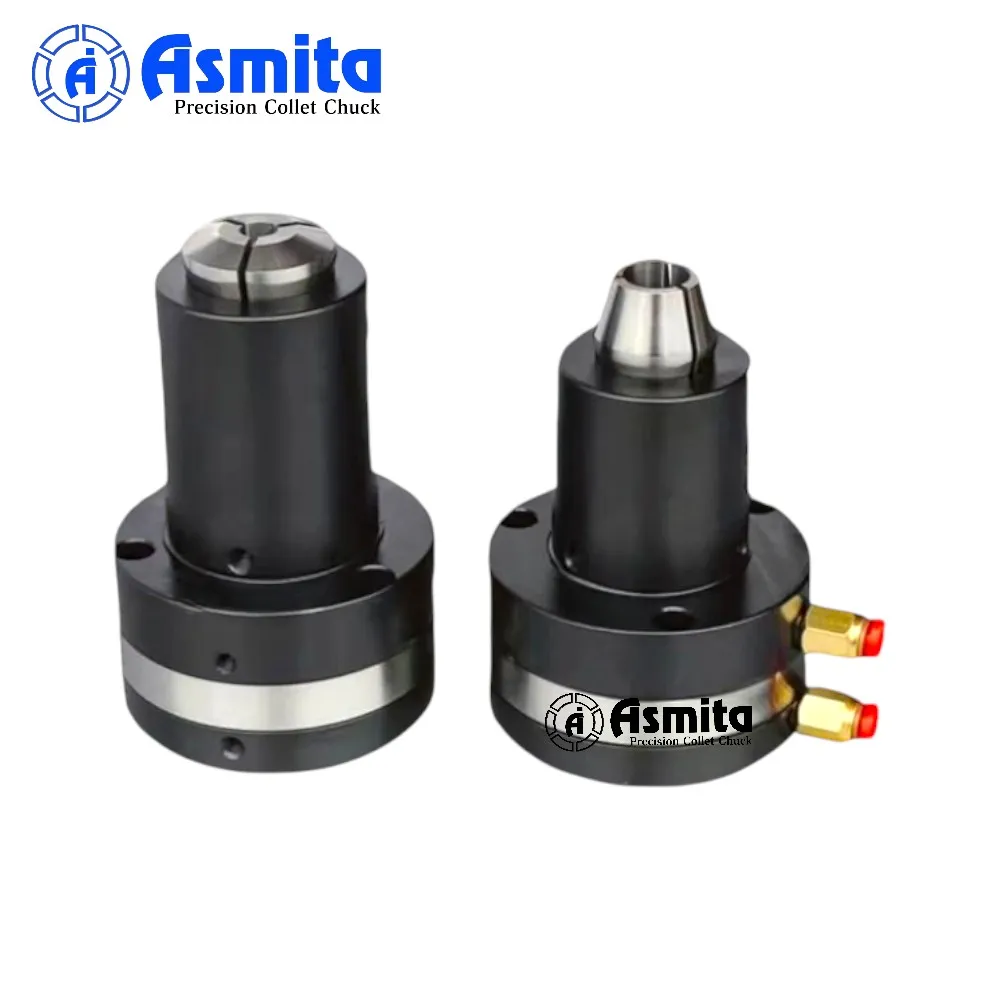

Mini Air Collet Chuck is a compact, air-operated collet chuck designed for small-diameter components and precision machining. Using pneumatic actuation, it delivers fast clamp–unclamp cycles, uniform gripping, and excellent repeatability—ideal for CNC lathes, bench machines, SPMs, and automation stations where space is limited.
Its lightweight design reduces inertia and improves responsiveness, making it perfect for micro parts, electronics, watch parts, medical components, and fine engineering jobs.
Key Features
Dimension Reference – Mini Air Collet Chuck
Dimension Legend
|
Symbol |
Description |
|
A |
Chuck outer diameter |
|
B |
Mounting face diameter |
|
C |
Collet capacity |
|
D |
Front face thickness |
|
E |
Chuck body length |
|
F |
Collet stroke |
|
G |
Rear pilot / register |
|
H |
Overall length |
|
I (PCD) |
Mounting pitch circle diameter |
|
J |
Mounting bolt size |
✔ Supplied with front & sectional drawings (PDF/DWG)
✔ Custom PCD, pilot diameter & stroke available
📊 Typical Capacity (Reference)
|
Model |
Collet Type |
Capacity Range |
|
MAC-3 |
Mini collet |
up to 3 mm |
|
MAC-6 |
Mini collet |
up to 6 mm |
|
MAC-10 |
Mini collet |
up to 10 mm |
|
MAC-12 |
Mini collet |
up to 12 mm |
(Exact size depends on application and collet design.)
Operating Parameters
Applications
Why Choose Mini Air Collet Chuck?
✔ Precise gripping for small parts
✔ Compact—ideal for limited space
✔ Faster cycles than manual chucks
✔ Gentle clamping—no part damage
✔ Perfect for automation & mass production
What is a Mini Air Collet Chuck?
Why should I use a Mini Air Collet Chuck?
How does a Mini Air Collet Chuck work
How do I choose the correct Mini Air Collet Chuck?
Why should I choose Asmita Industries for Mini Air Collet Chucks?
Have questions about a specific product? Our team will help you find the right option for your needs — ensuring compatibility, quality, and value.

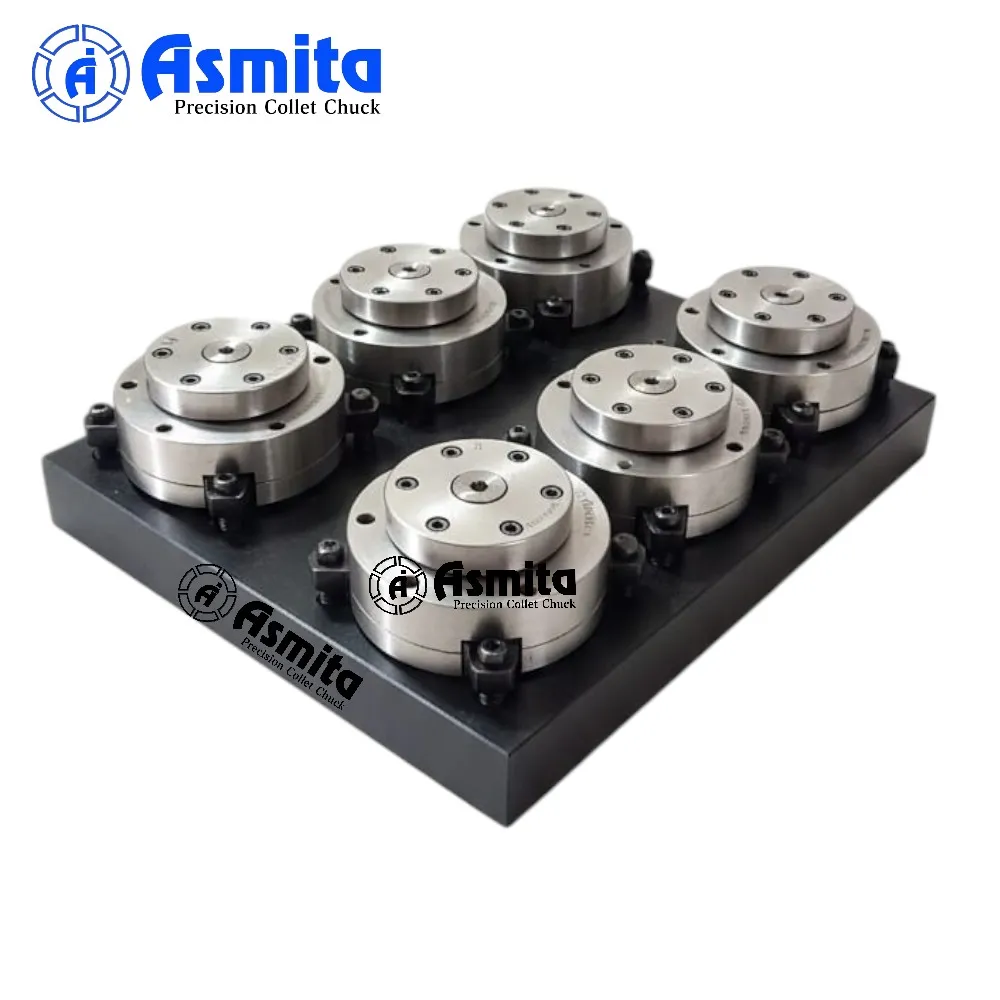

A Multiple OD Clamping Collet Chuck – Pneumatic Stationary is a non-rotating, air-operated workholding system designed to clamp multiple components simultaneously on their outside diameter. Using stationary pull-back collet modules with dead-length accuracy, it provides uniform gripping, excellent repeatability, and increased output per cycle, making it ideal for SPMs, transfer lines, CNC stationary operations, and automated production cells.

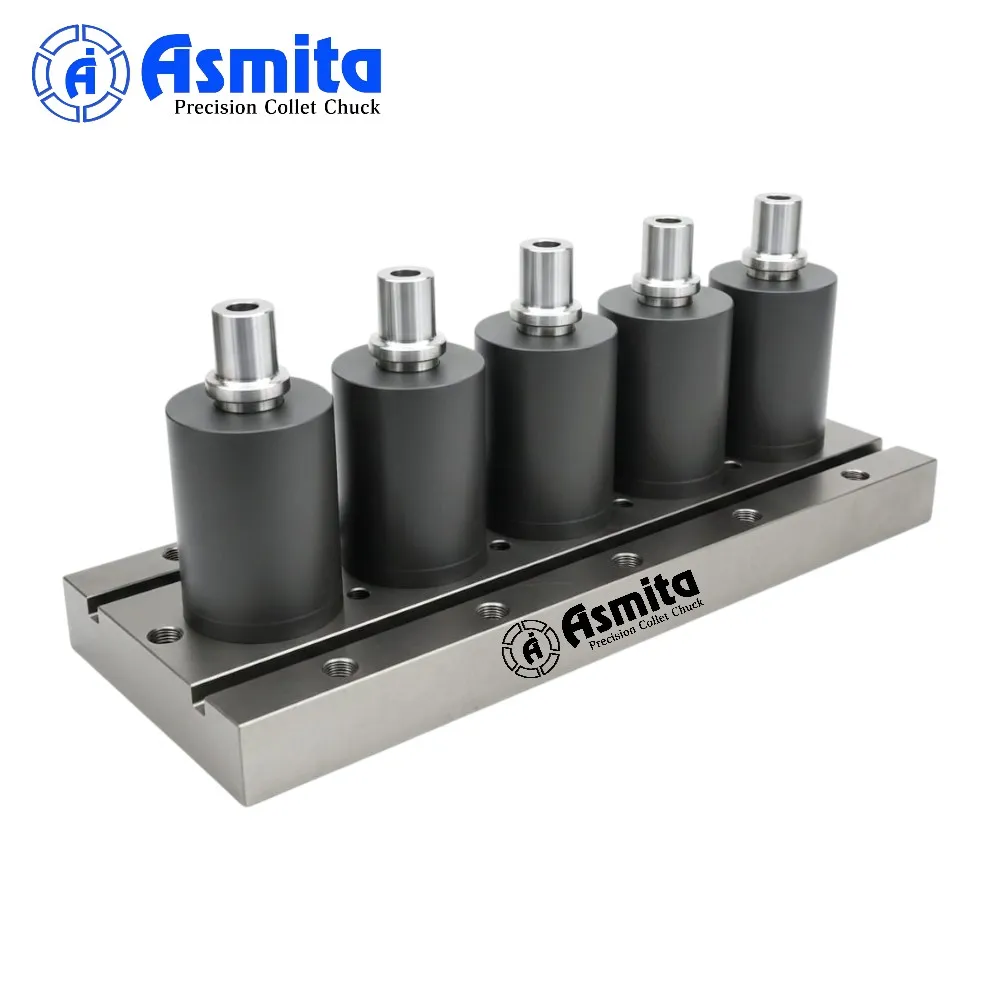

A Pneumatic Expanding Stationary Collet Chuck is a non-rotating, air-operated internal workholding system that grips components from the inside diameter using an expanding collet. With dead-length clamping and zero axial movement, it is ideal for thin-wall parts, rings, sleeves, bushes, and bearing housings in CNC stationary operations, SPMs, transfer lines, and automated production systems requiring high accuracy and repeatability.

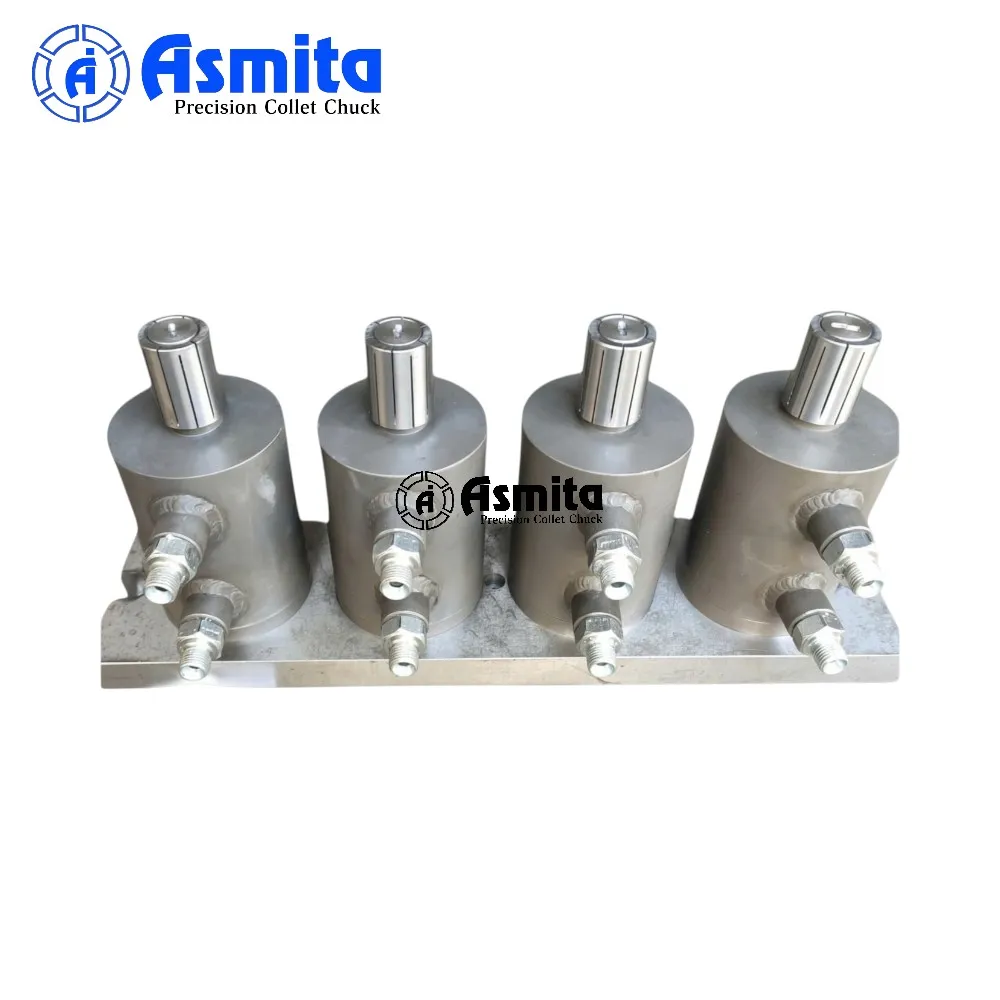

A VMC Pneumatic Multiple Clamping Fixture is a custom-designed, air-operated workholding system that clamps multiple components simultaneously on a Vertical Machining Center. It reduces loading time, increases spindle utilization, and ensures consistent part-to-part accuracy, making it ideal for mass production, batch machining, and automation-ready CNC environments.
-manufacturer-india.webp)

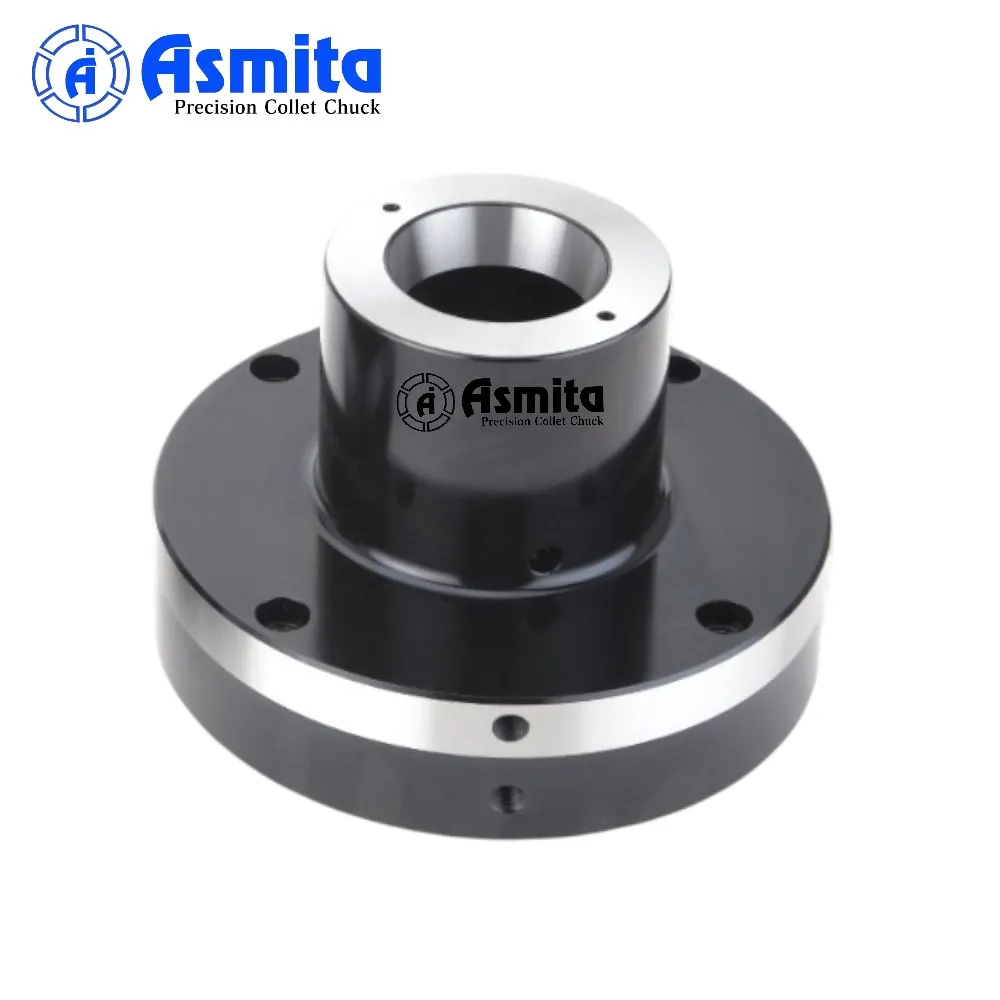

A Pneumatic Stationary Pull Back Collet Chuck is a non-rotating, air-operated workholding system designed for 5C, YB (16YB, 25YB, 40YB), and Thada collets. Using a pull-back mechanism, compressed air draws the collet into a hardened taper to generate strong radial clamping with dead-length accuracy, ensuring no axial movement of the job—ideal for high-precision CNC stationary operations, SPMs, and automated production lines.
-manufacturer-india.webp)

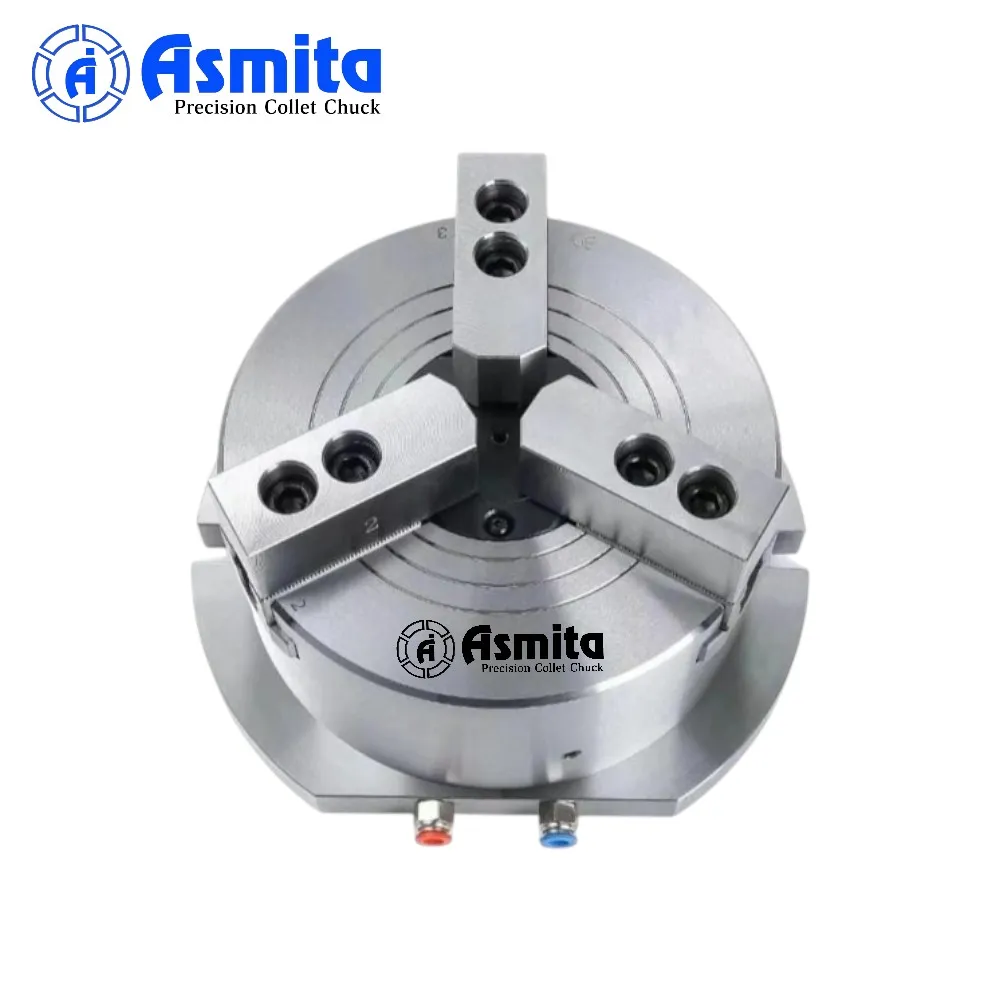

A Pneumatic Stationary Chuck is a non-rotating, air-operated workholding system that provides dead-length clamping with no axial movement, high rigidity, and repeatable accuracy. Its stationary design ensures stable and consistent part positioning, making it ideal for CNC stationary operations, SPMs, transfer lines, and automated cells, and it is available in jaw, collet, Traub collet, and expanding collet configurations.

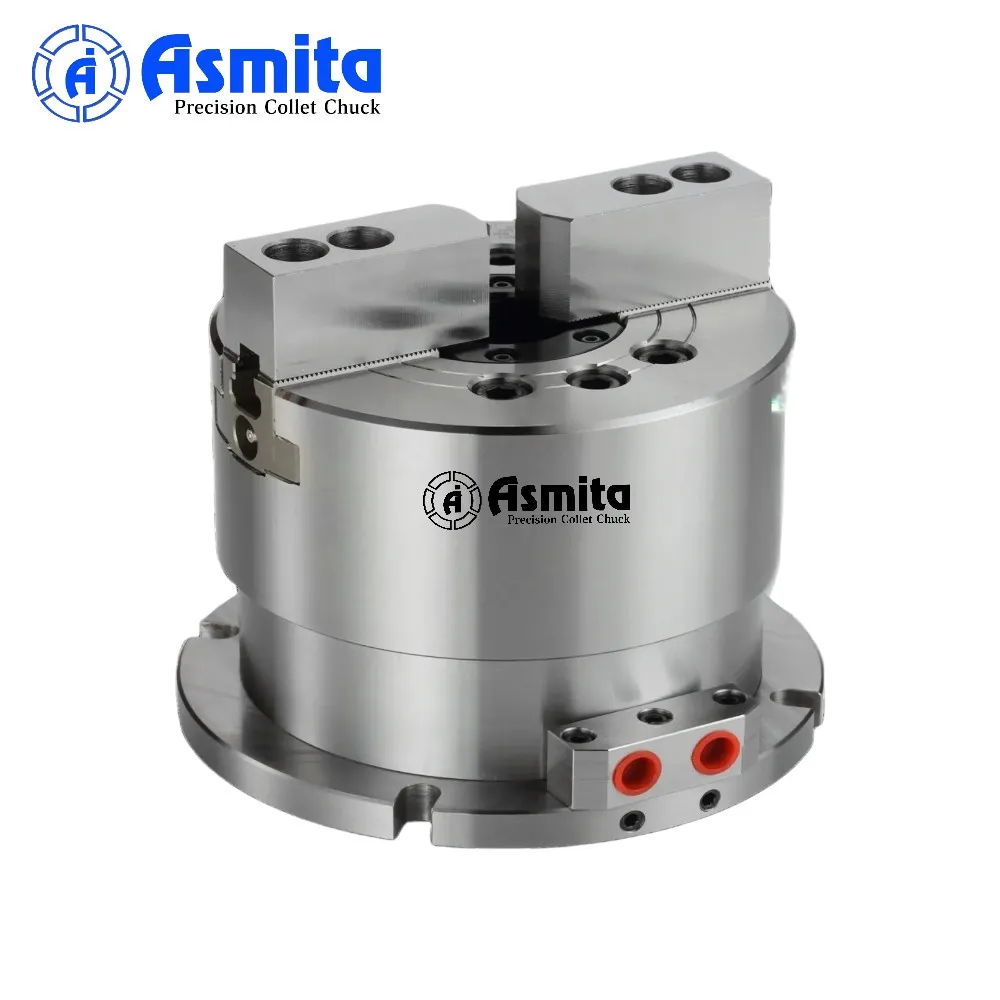

A Pneumatic Stationary Power Chuck is a non-rotating, air-operated workholding system designed to deliver high clamping force with dead-length accuracy and maximum rigidity. Its stationary design ensures zero axial movement, consistent part positioning, and fast cycle times, making it ideal for CNC stationary setups, SPMs, transfer lines, and automated production cells requiring reliable and repeatable performance.

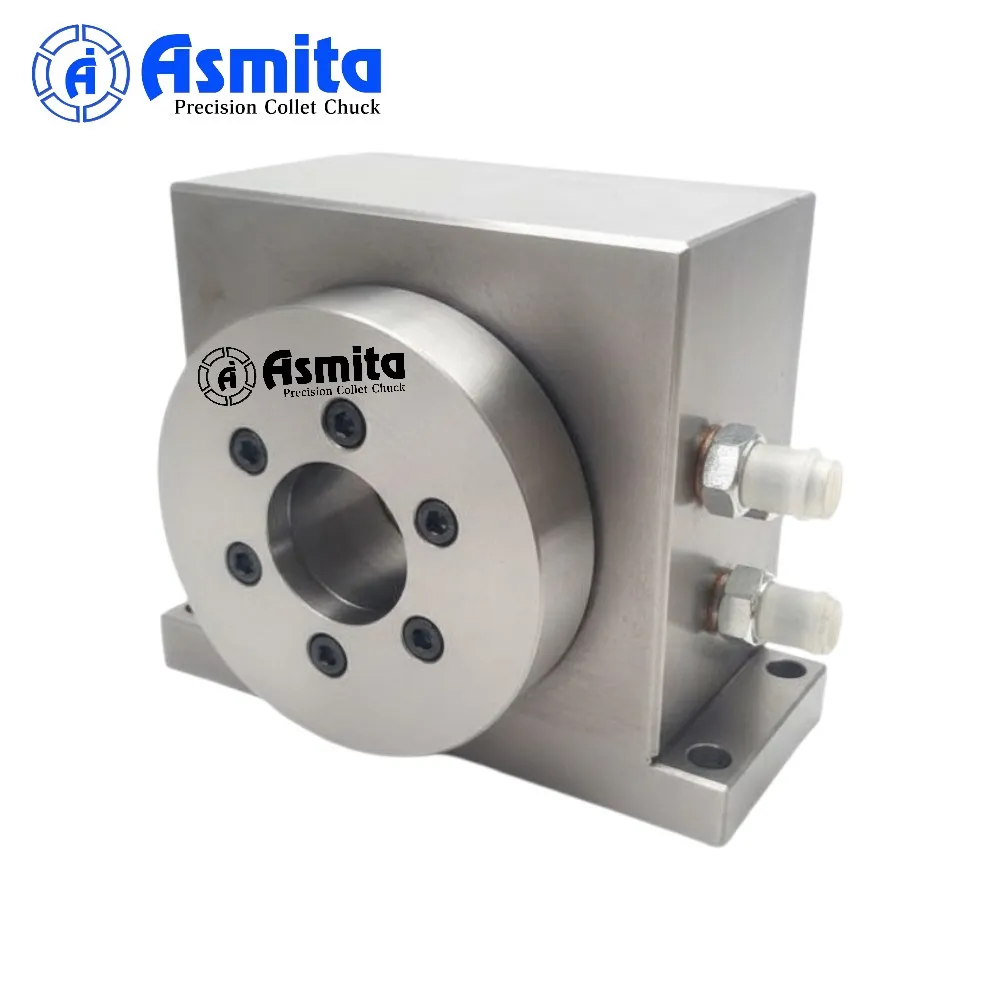

A Pneumatic Stationary Power Chuck with Head is a non-rotating workholding system that uses compressed air to actuate jaws through an integrated power head mechanism. It delivers high clamping force, dead-length performance with zero axial shift, and consistent repeatability, making it ideal for CNC stationary fixtures, SPMs, transfer lines, and automated production systems requiring strong grip and reliable performance under demanding machining conditions.

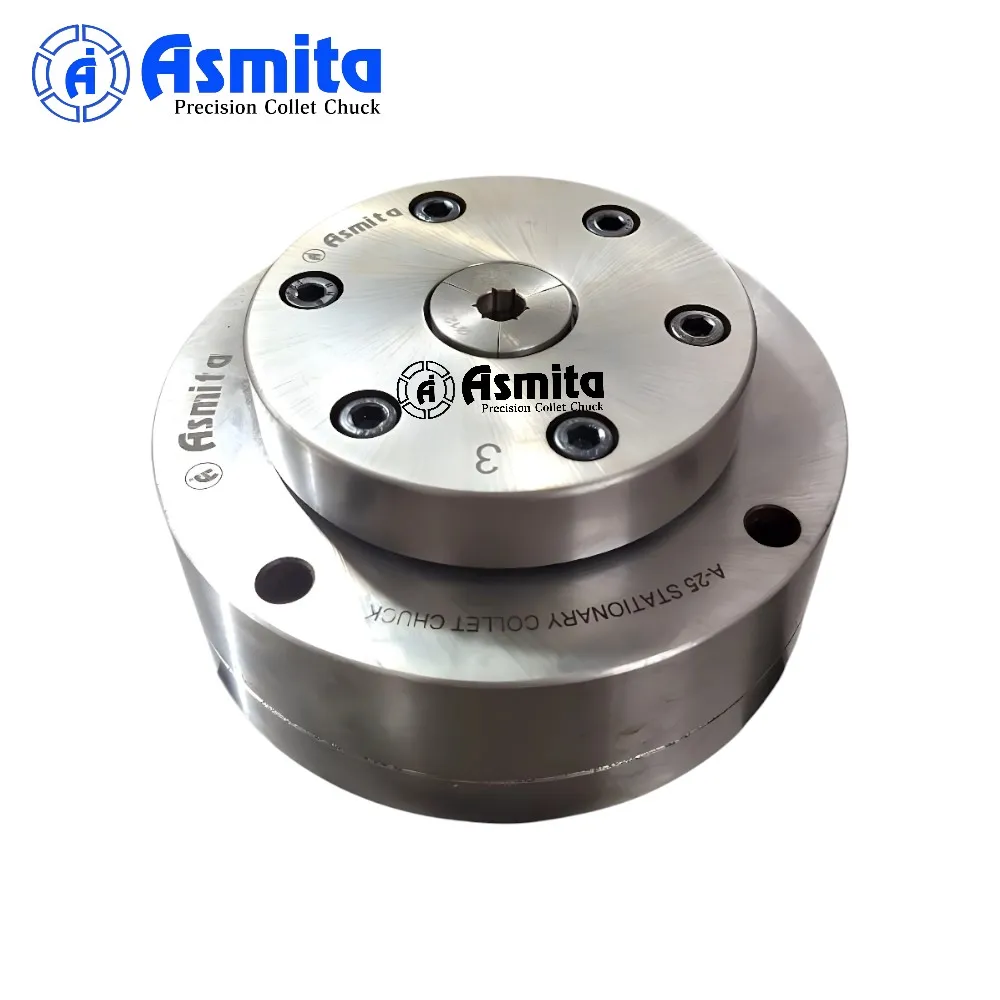

A Pneumatic Stationary Traub Collet Chuck is a non-rotating, air-operated workholding system designed for Traub collets and dead-length clamping. By holding components on the OD with the chuck body remaining stationary, it delivers excellent concentricity, strong gripping force, consistent part length, and repeatable accuracy—making it ideal for precision machining, automation, and transfer line production.
