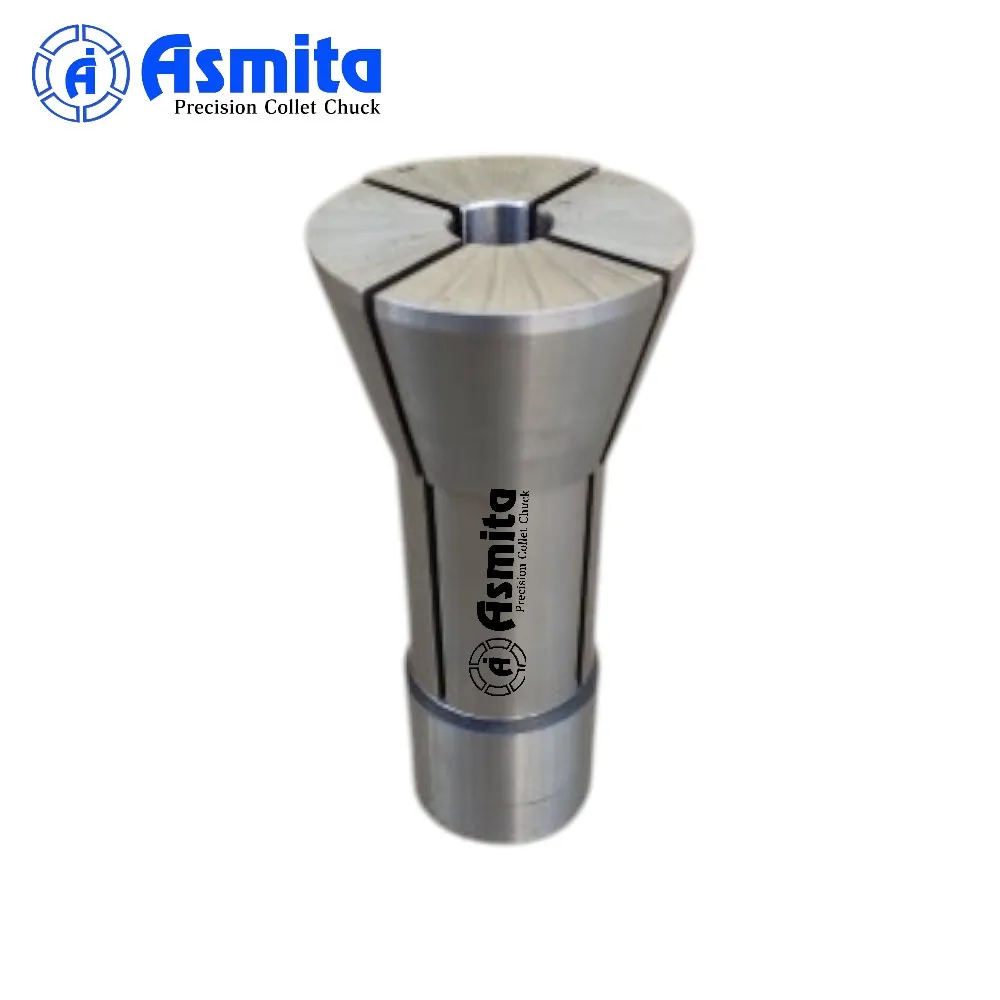

A Thada Collet is a traditional heavy-duty workholding collet commonly used on Indian automatic lathes, capstan lathes, turret lathes, and SPM machines. It is designed for strong gripping force, rugged durability, and economical mass production, making it ideal for applications where long service life and reliability are prioritized over ultra-fine accuracy.
A Thada Collet is a traditional heavy-duty Workholding collet widely used in Indian automatic lathes, capstan lathes, turret lathes, and SPM machines.
It is specially designed for strong gripping force, durability, and economical mass production.
Thada collets are preferred where rugged construction and long life are more important than ultra-fine accuracy.
Key Features
• Strong mechanical gripping force
• Simple & robust design
• Suitable for continuous production
• Easy maintenance and replacement
• Cost-effective for Indian machine tools
• Available in round, hex, square & step types
Thada Collet – Dimension Details (Typical Range)
|
Parameter |
Standard Range |
|
Collet Type |
Thada Collet |
|
Outer Diameter (OD) |
25 – 65 mm |
|
Overall Length (L) |
45 – 100 mm |
|
Clamping Capacity |
3 – 45 mm |
|
Nose Angle |
30° |
|
Grip Type |
External gripping |
|
Accuracy (TIR) |
≤ 0.01 mm |
Exact OD, length, and bore are normally manufactured as per machine spindle and job requirement.
Construction Details
• Material: Spring Steel
• Heat Treatment: Hardened & tempered
• Slots: Straight / angular slit design
• Finish: Bore ground or semi-ground as required
Types of Thada Collets
• Round Thada Collet
• Hex Thada Collet
• Square Thada Collet
• Step Thada Collet
• Special profile Thada Collet
Applications
• Indian automatic lathes
• Capstan & turret lathes
• SPM machines
• Fasteners, pins, bushes
• Brass, MS & aluminum components
Supply Options
• Standard & custom sizes
• Hardened or soft (machinable)
• Made as per drawing or sample
• Suitable for manual & semi-automatic machines
