An ER collet is a high-precision tool-holding device used in CNC, milling, drilling, and grinding machines. Manufactured from hardened and ground 65Mn spring steel and compliant with DIN 6499 / ISO 15488 standards, it offers excellent concentricity, strong gripping force, and a wide clamping range for accurate and reliable machining.
An ER collet is a high-precision tool holding device used in CNC machines, milling machines, drilling machines, and grinding machines.
It provides excellent concentricity, strong gripping force, and wide clamping range.
Standard: DIN 6499 / ISO 15488
Material: Spring Steel 65 Mn (Hardened & Ground)
🔹 Key Features
• High gripping accuracy (≤ 0.005 mm)
• Wide clamping range (1 mm per collet)
• Suitable for round, hex, square tools
• Long service life with proper heat treatment
• Interchangeable with all standard ER chucks
ER COLLET DIMENSION TABLE (ER8 to ER50)
|
ER Collet |
Length (L) |
Diameter D1 |
Clamping Range |
|
ER-8 |
13mm (0.51") |
8.5mm (0.33") |
0.5 – 5mm (0.020—0.276") |
|
ER-11 |
18mm (0.71") |
11.5mm (0.45") |
0.5 – 7mm (0.020—0.276") |
|
ER-16 |
27.5mm (1.08") |
17mm (0.67") |
1 – 9mm (0.020—0.354") |
|
ER-20 |
31.5mm (1.24") |
21mm (0.83") |
1 – 13mm (0.039—0.512") |
|
ER-25 |
34mm (1.34") |
26mm (1.02") |
1 – 16mm (0.039—0.630") |
|
ER-32 |
40mm (1.57" |
33mm (1.30") |
1 – 21mm (0.039—0.827") |
|
ER-40 |
46mm (1.81") |
41mm (1.61") |
3 – 26mm (0.118—1.024") |
|
ER-50 |
60MM (2.36”) |
52MM (2.05”) |
5 – 34mm |
Each ER collet clamps within 1 mm of its nominal size.
Applications
Supply Options
What is an ER collet?
What is an ER collet used for?
What industries use ER collets?
What sizes of ER collets are available and how do I choose the right one?
Why choose Asmita Industries for ER collets?
Have questions about a specific product? Our team will help you find the right option for your needs — ensuring compatibility, quality, and value.

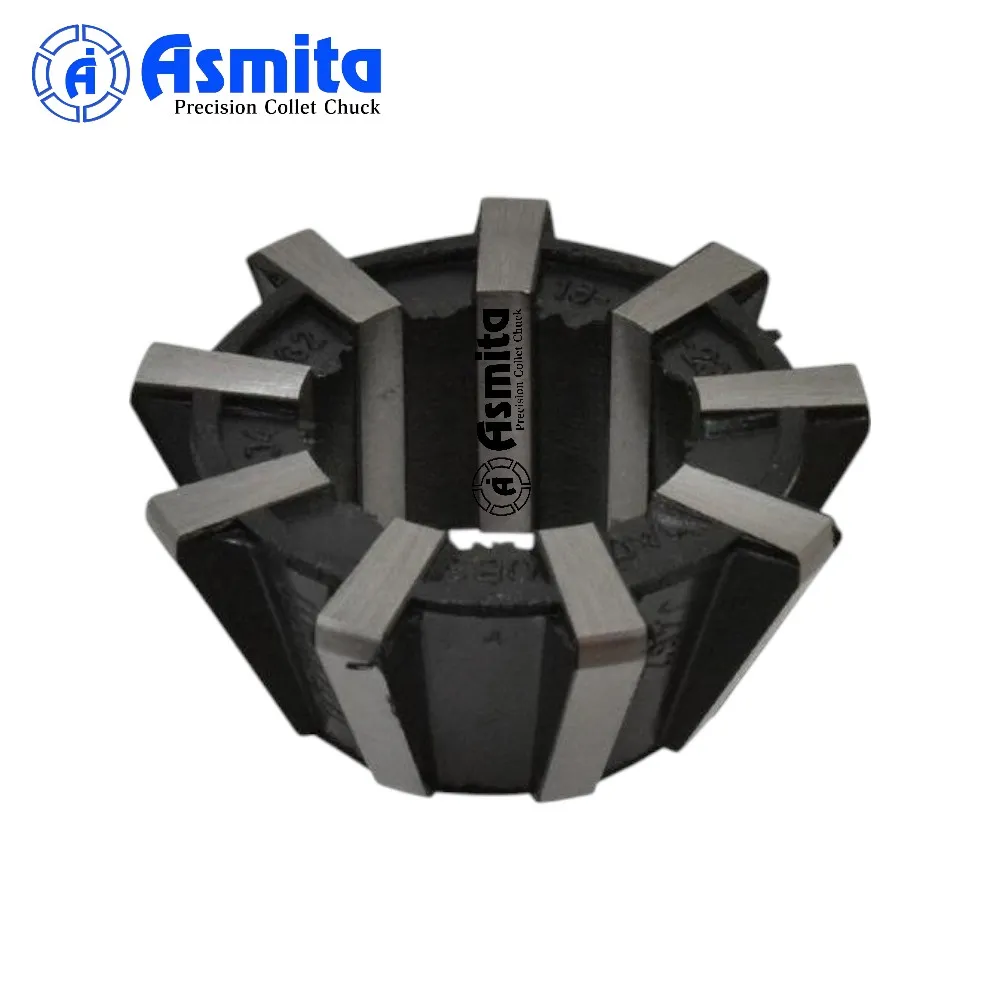

A Quick Change Rubber Collet is a soft, flexible workholding collet designed for rapid replacement and non-marking grip of delicate, finished, or thin-wall components. It is ideal for automation lines, inspection stations, grinding, polishing, and light machining applications where frequent size changes, speed, and surface protection are essential.

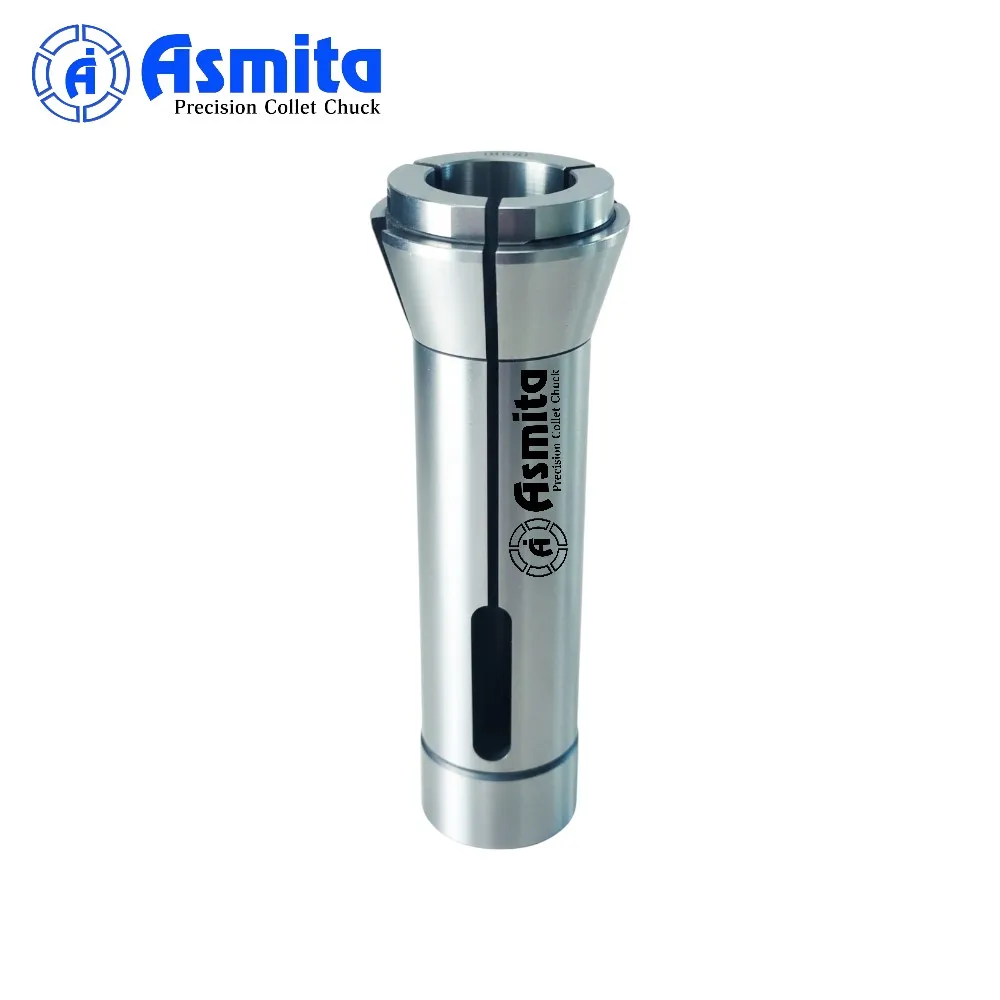

A Friction Collet is a specialized workholding collet that grips components using high-friction contact surfaces rather than relying only on elastic spring force. It is ideal for smooth, hardened, plated, or polished components that tend to slip in standard steel collets, and is widely used in CNC turning, grinding, automation, and mass production applications.

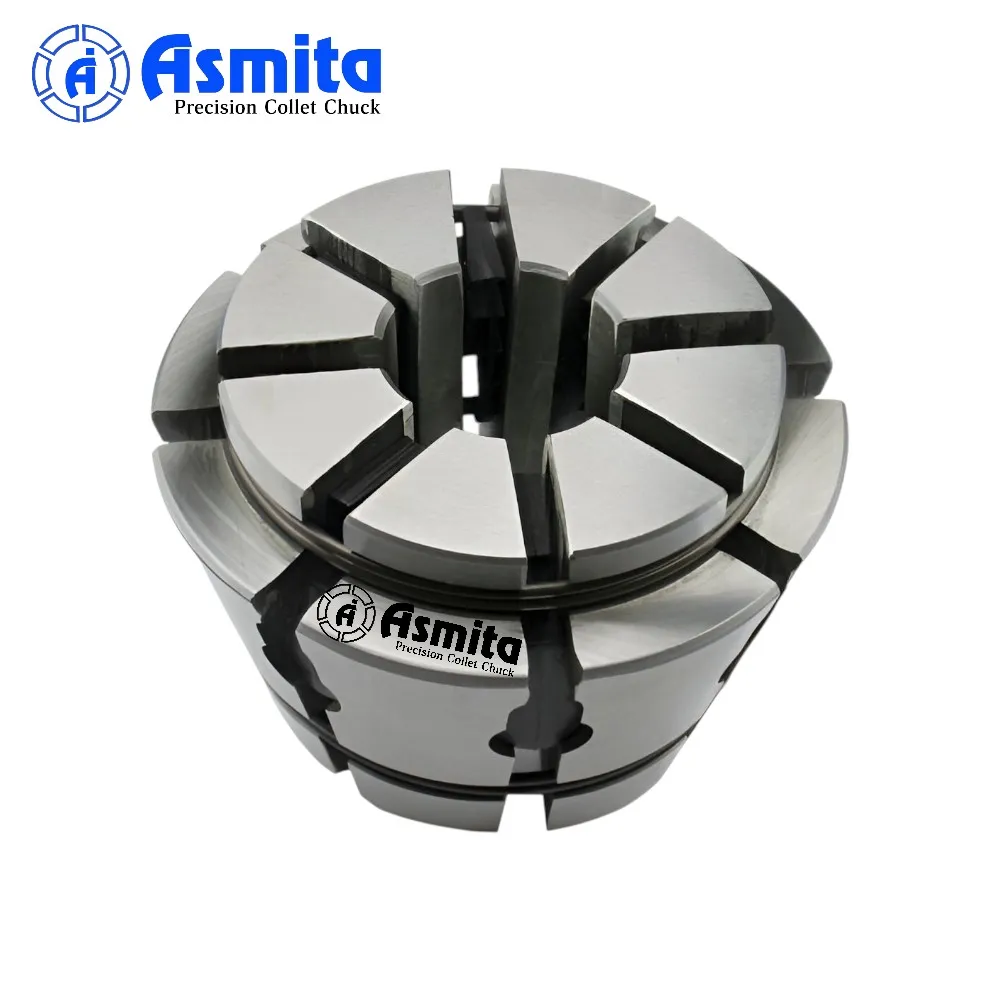

A Multi Bore Collet is a special-purpose workholding collet designed with two or more bores to clamp multiple identical components simultaneously in a single cycle. Commonly used in CNC lathes, SPM machines, transfer lines, and automation systems, it increases productivity, reduces cycle time, and is ideal for high-volume production of small components.

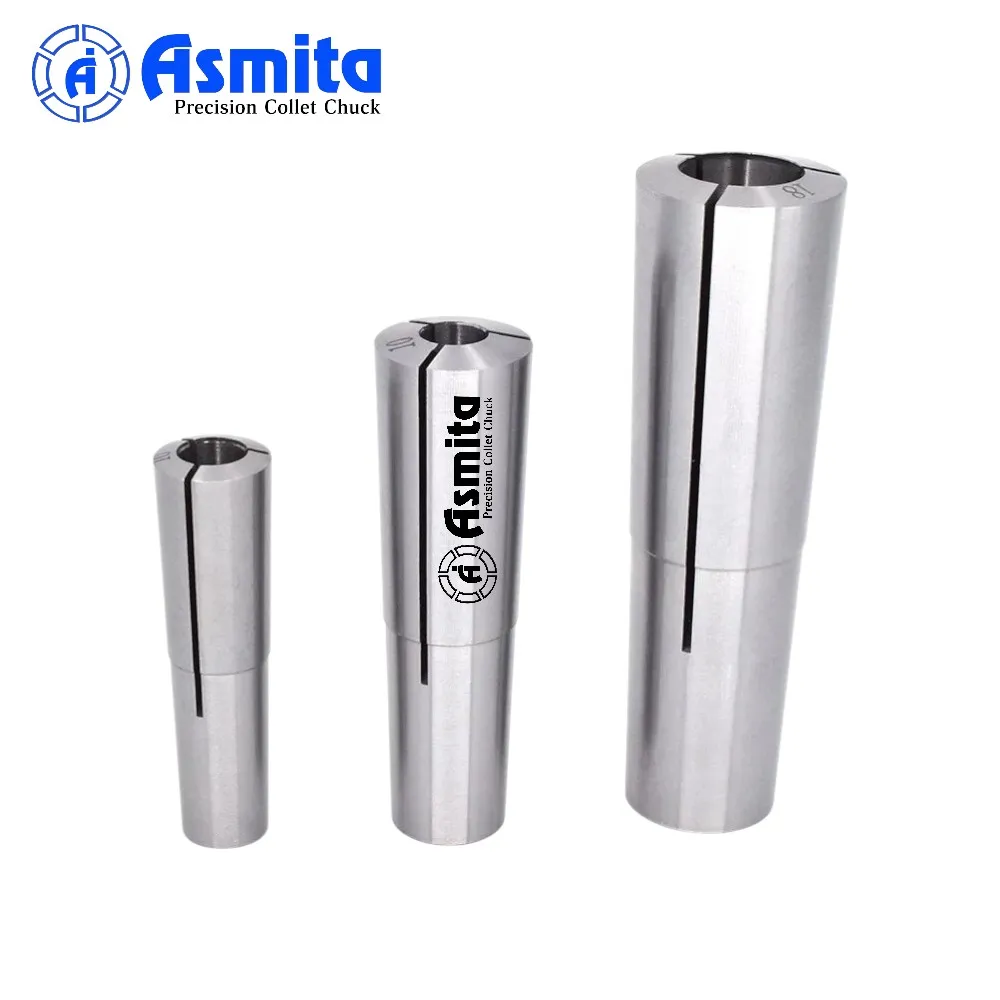

An MT Collet (Morse Taper Collet) is a tool-holding collet with a Morse taper shank used on drilling machines, milling machines, lathes, and radial drills. It securely holds straight-shank tools such as drills, reamers, end mills, and taps, providing good concentricity and rigid support for accurate machining.

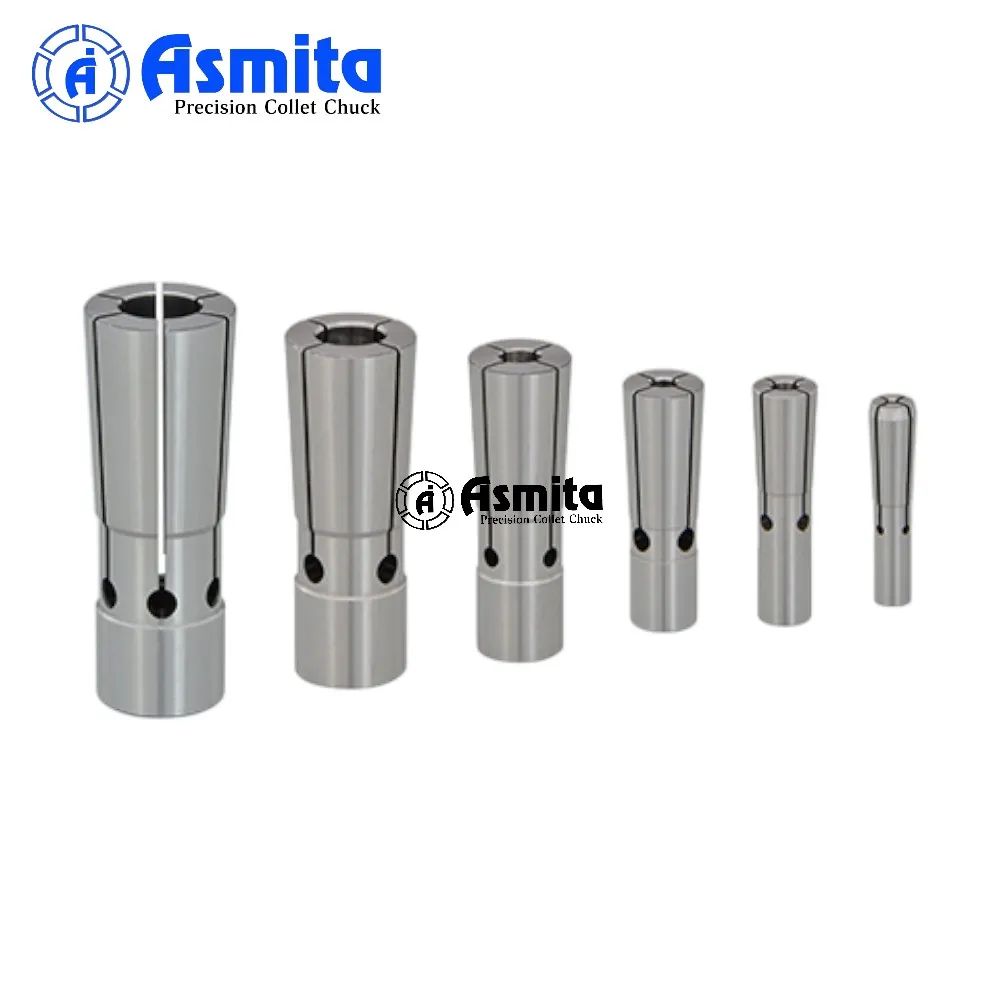

An SDC Collet is a single-taper precision tool-holding collet designed to deliver strong gripping force with low runout. It is commonly used in CNC machining centers, drilling and tapping machines, and SPMs where high rigidity, repeatability, and accurate tool holding are required.

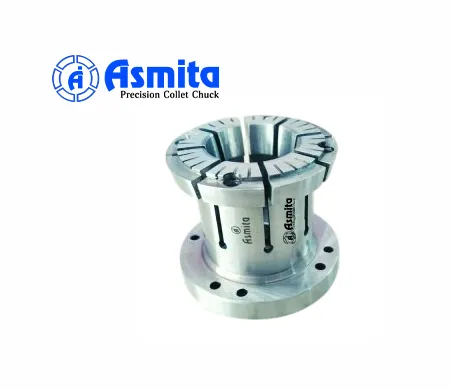

A Bearing Collet is a precision workholding collet designed to securely hold bearing components such as inner rings, outer rings, races, and assembled bearings during grinding, turning, inspection, and assembly operations. It provides uniform clamping, high concentricity, and distortion-free holding, ensuring bearing accuracy, performance, and long service life.

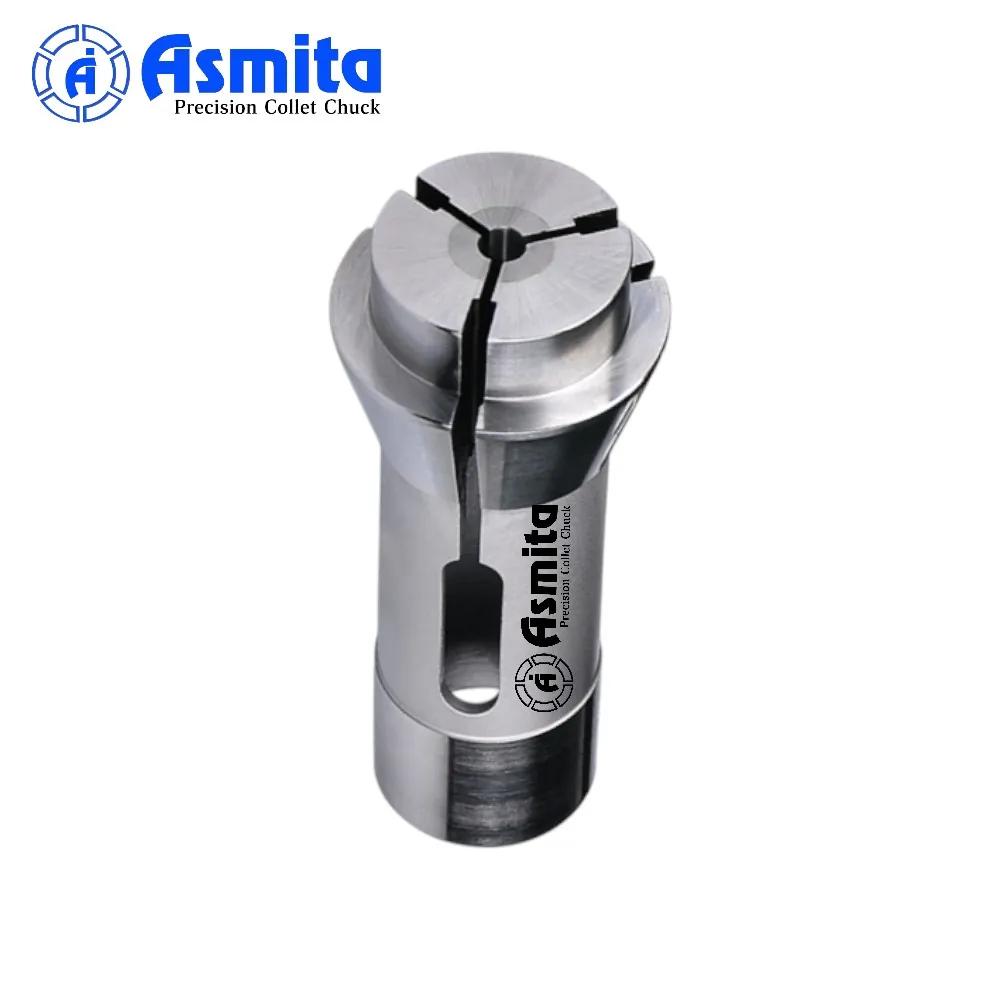

An F Series Collet is a heavy-duty workholding collet used on manual lathes, CNC lathes, and capstan or turret lathes. It provides strong gripping force, high rigidity, and reliable accuracy for medium to large diameter components, making it an ideal replacement for jaw chucks to achieve better precision and faster cycle times.

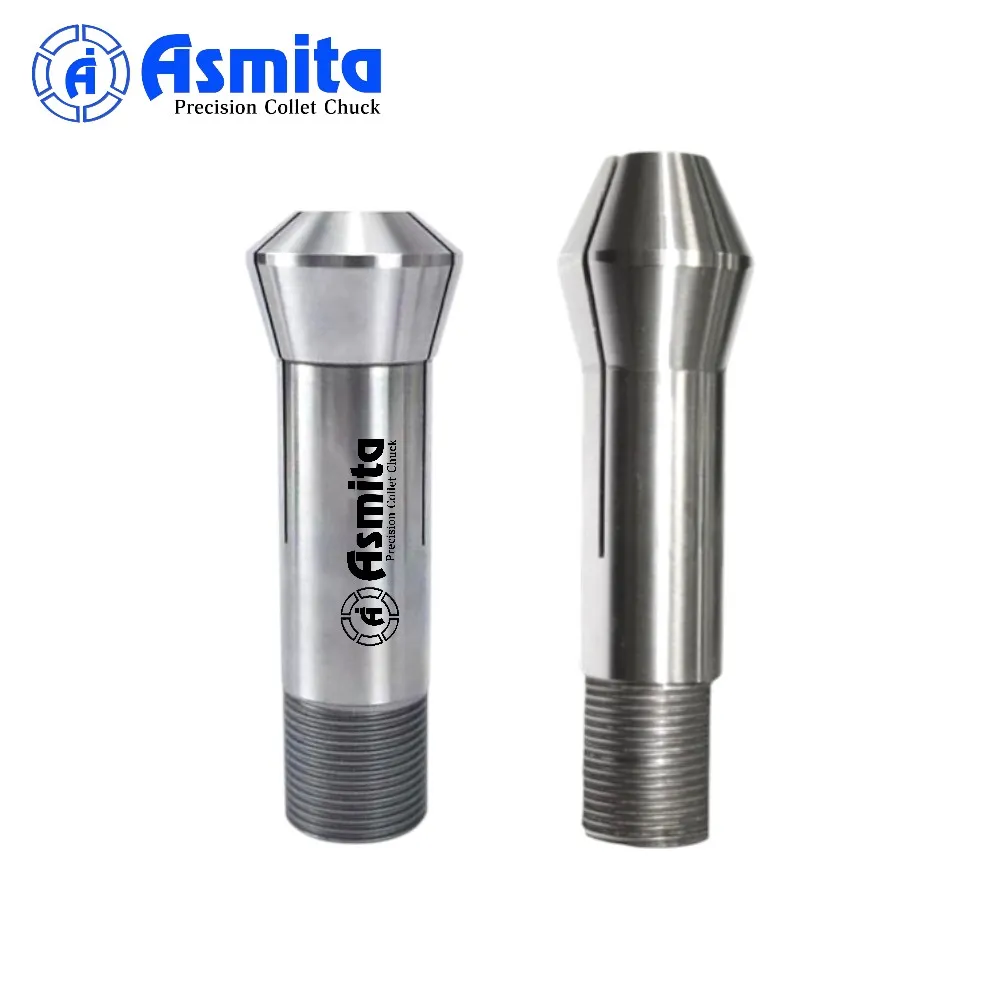

A W-Series Collet is a high-precision, draw-in type workholding collet commonly used on cylindrical grinders, tool and cutter grinding machines, milling fixtures, and inspection setups. It offers excellent concentricity, high rigidity, and repeatable accuracy, making it ideal for precision grinding and finishing operations.
