A Hydraulic Rotary Collet Chuck is a power-operated rotary workholding system actuated by hydraulic pressure through a rotary union, providing strong and consistent clamping during continuous rotation. It offers excellent concentricity, rigidity, and stability under heavy cutting loads, making it ideal for CNC lathes, turning centers, rotary tables, trunnions, and 4-axis/5-axis machining centers using OD or ID collet systems.
Hydraulic Rotary Collet Chuck is a power-operated rotary workholding system that uses hydraulic pressure via a rotary union to actuate precision collets during continuous rotation. It delivers much higher and more consistent clamping force than pneumatic systems, ensuring excellent concentricity, rigidity, and stability—even under heavy cutting loads.
Ideal for CNC lathes, turning centers, rotary tables, trunnions, and 4-axis/5-axis machining centers, this chuck supports OD collets (pull-back) and ID expanding collets as per application.
🔑 Key Features
📐 Dimension Reference – Hydraulic Rotary Collet Chuck
🔩 Dimension Legend
|
Symbol |
Description |
|
A |
Chuck outer diameter |
|
B |
Mounting face diameter |
|
C |
Collet capacity (OD/ID) |
|
D |
Front face thickness |
|
E |
Chuck body length |
|
F |
Collet stroke (pull-back / expansion) |
|
G |
Rear pilot / register |
|
H |
Overall length |
|
I (PCD) |
Mounting pitch circle diameter |
|
J |
Mounting bolt size |
✔ Front & sectional drawings (PDF/DWG) supplied
✔ PCD, pilot diameter, stroke & interface customizable
📊 Typical Capacity (Reference)
|
Model |
Collet Type |
Capacity |
Max RPM* |
|
HRC-25 |
OD Pull-Back |
up to 25 mm |
~3000 |
|
HRC-42 |
OD / ID |
up to 42 mm |
~2500 |
|
HRC-60 |
OD / ID |
up to 60 mm |
~2000 |
*RPM depends on size, balancing class, and application.
⚙️ Operating Parameters
🏭 Applications
⭐ Why Choose a Hydraulic Rotary Collet Chuck?
✔ Higher grip & rigidity than pneumatic systems
✔ Stable clamping during continuous rotation
✔ Excellent concentricity & surface finish
✔ Suitable for heavy cuts & hard materials
✔ Ideal for multi-axis CNC machining
Have questions about a specific product? Our team will help you find the right option for your needs — ensuring compatibility, quality, and value.

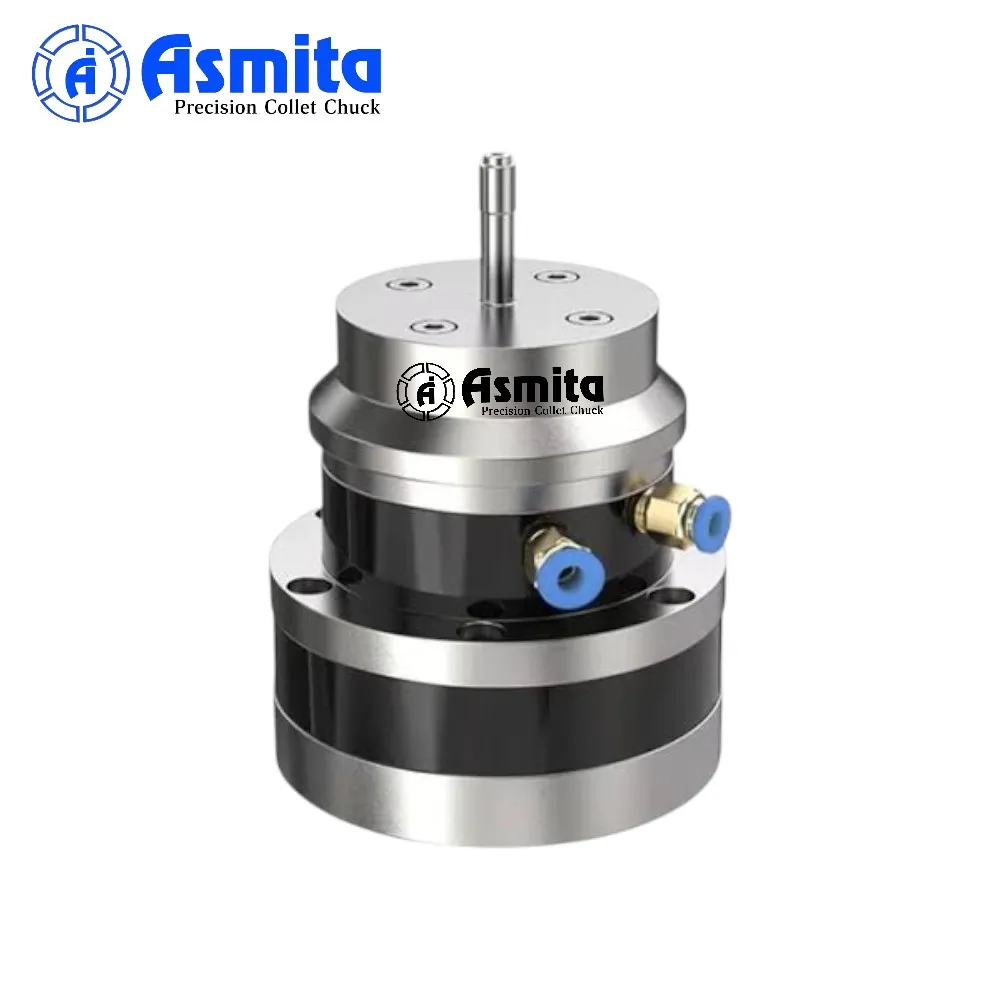

A Hydraulic Rotary Expanding Collet Chuck is a power-operated internal gripping workholding system that uses hydraulic pressure through a rotary union to clamp components from the inside diameter during continuous rotation. It delivers high, consistent clamping force with excellent concentricity and rigidity, making it ideal for 4-axis and 5-axis CNC machining, rotary tables, trunnions, and turning centers handling thin-wall parts, rings, bearing housings, and precision bores.

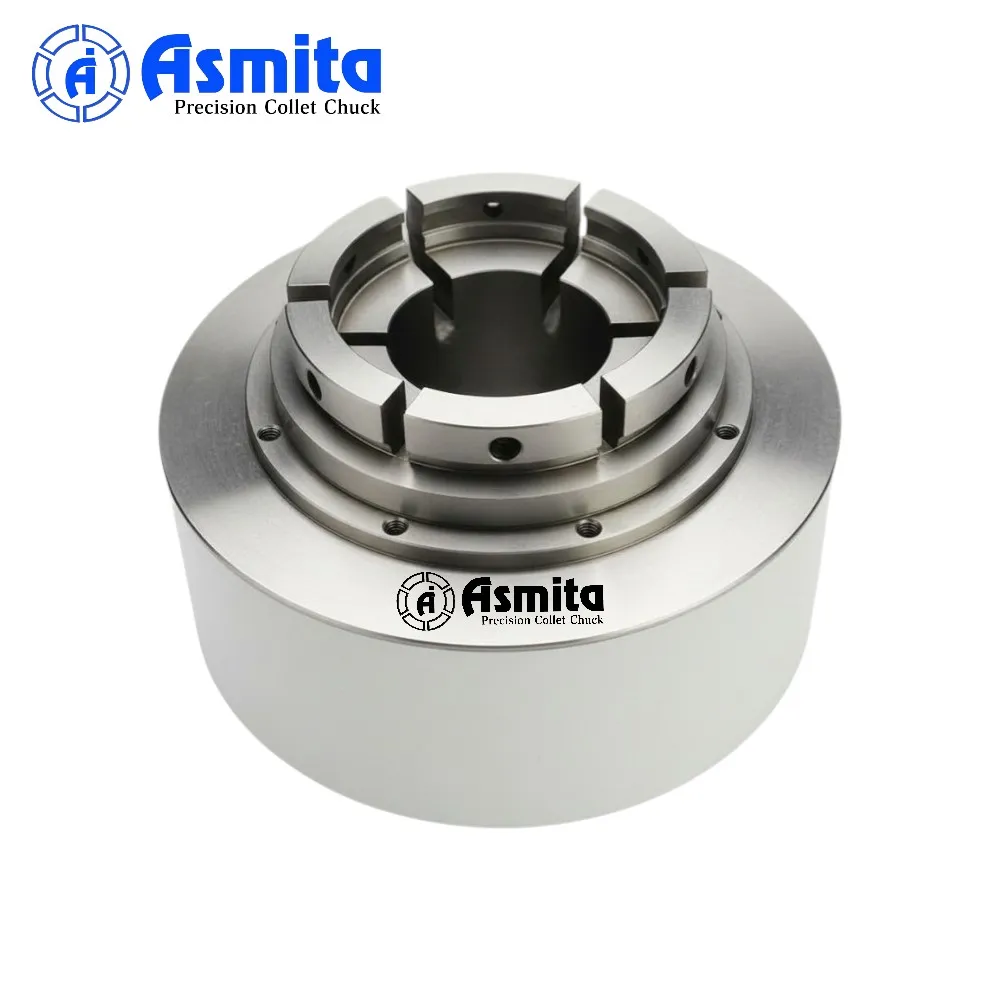

A Hydraulic Rotary Jaw Type Chuck is a power-operated rotary workholding system actuated by hydraulic pressure through a rotary union. It delivers high and consistent clamping force, superior rigidity, and stable performance at high RPM, making it ideal for CNC lathes, turning centers, rotary tables, and 4-axis/5-axis machines used for heavy cutting, high-torque operations, and machining large or hard components.
