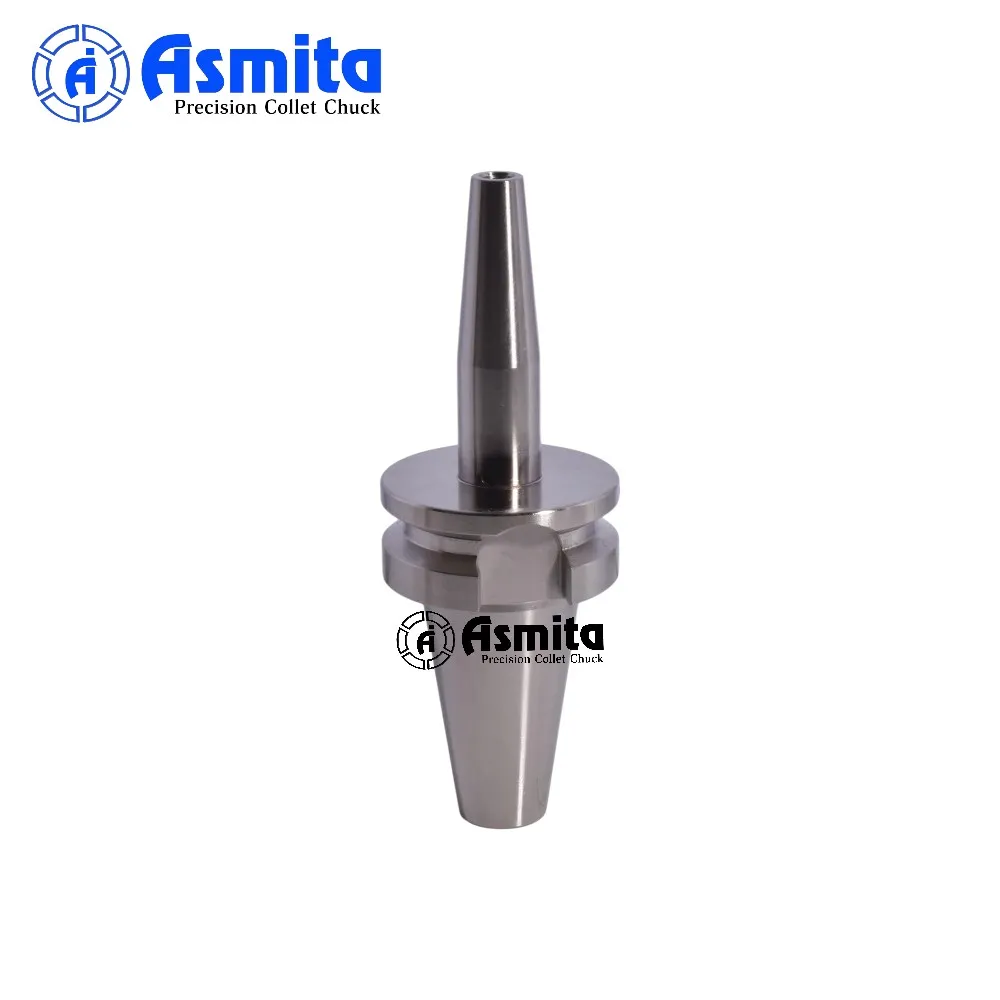

Shrink Fit Tool Holders are advanced CNC tool holding solutions designed for extreme accuracy, high-speed machining, and superior rigidity. The holder grips the cutting tool by thermal expansion—the bore expands when heated and clamps the tool tightly as it cools, ensuring near-zero runout and exceptional balance.
Asmita Industries manufactures high-precision Shrink Fit Tool Holders suitable for demanding applications in aerospace, die & mold, medical, and high-speed CNC machining.
Available Types
- BT Shrink Fit Tool Holder (BT30 / BT40 / BT50)
- HSK Shrink Fit Tool Holder
- CAT Shrink Fit Tool Holder
- SK / ISO Shrink Fit Tool Holder
- Slim Shrink Fit Holder (Deep cavity machining)
- Coolant Through Shrink Fit Holder
- Custom Shrink Fit Holders (as per drawing)
Key Features
- Runout ≤ 0.003 mm (often ≤ 0.002 mm)
- Excellent balance for high RPM machining
- Very high gripping force (360° clamping)
- Slim nose design for better tool reach
- No collet, no moving parts → maximum rigidity
- Ideal for finishing & semi-finishing
Applications
- High-speed CNC milling
- Die & mold finishing
- Aerospace & medical components
- Precision aluminum & hardened steel machining
- Micro and small diameter tools
Technical Specifications (Typical)
|
Parameter
|
Specification
|
|
Standards
|
BT / HSK / CAT / SK
|
|
Sizes
|
BT30, BT40, BT50
|
|
Bore Range
|
Ø3 mm to Ø32 mm
|
|
Runout
|
≤ 0.003 mm
|
|
Balancing
|
G2.5 @ 25,000 RPM
|
|
Material
|
High-strength alloy steel
|
|
Coolant
|
Through-coolant optional
|
Advantages Over Other Tool Holders
|
Holder Type
|
Accuracy
|
Speed
|
Rigidity
|
|
Shrink Fit
|
⭐⭐⭐⭐⭐
|
⭐⭐⭐⭐⭐
|
⭐⭐⭐⭐⭐
|
|
Hydraulic
|
⭐⭐⭐⭐
|
⭐⭐⭐⭐
|
⭐⭐⭐⭐
|
|
ER Collet
|
⭐⭐⭐
|
⭐⭐⭐
|
⭐⭐⭐
|
|
Side Lock
|
⭐⭐
|
⭐⭐
|
⭐⭐⭐⭐
|
Why Choose Asmita Industries Shrink Fit Tool Holders?
- ✅ Precision manufacturing with tight tolerances
- ✅ High-speed balanced holders
- ✅ Custom bore, projection & taper options
- ✅ Export-quality standards
- ✅ Competitive Indian pricing
