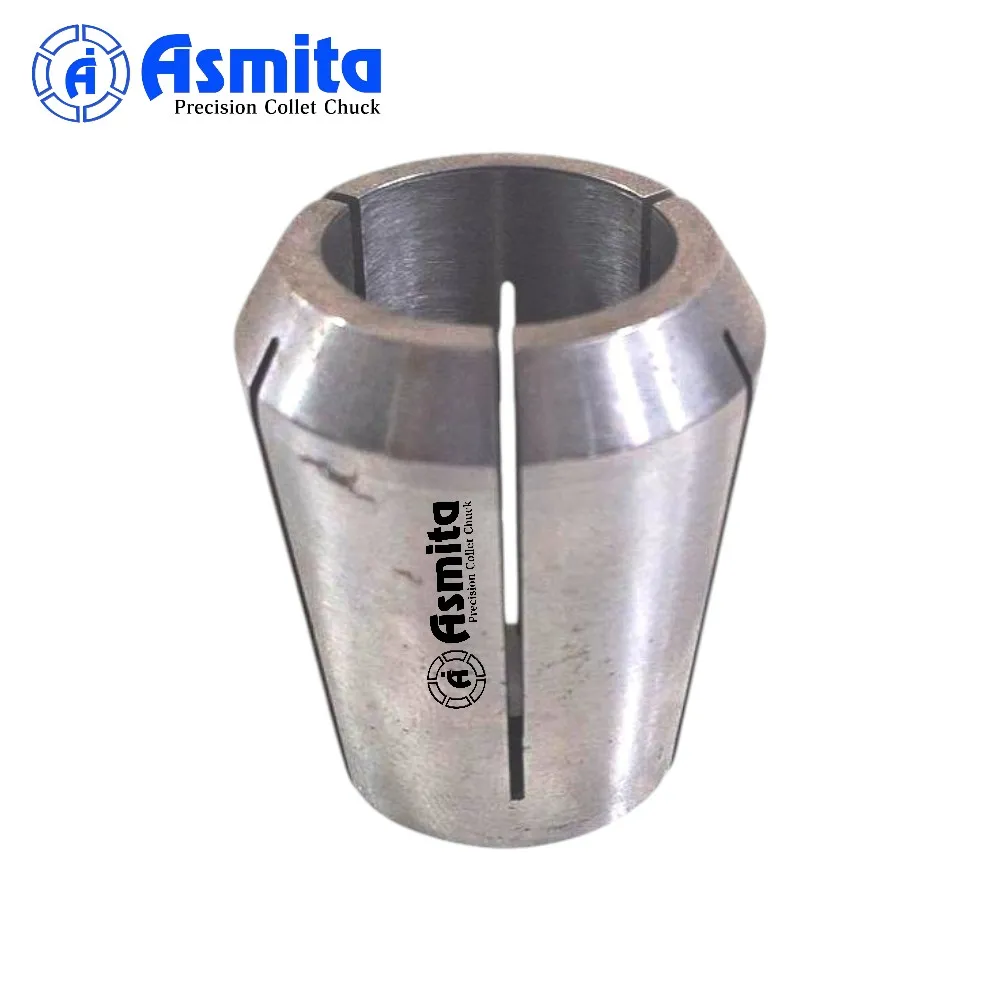

A Milling Collet is a precision tool-holding collet used to securely clamp end mills, slot drills, reamers, and cutters in milling machines and CNC machining centers. It ensures accurate centering, strong gripping force, and vibration-free cutting for improved surface finish and extended tool life.
A Milling Collet is a precision tool-holding collet used to clamp end mills, slot drills, reamers, and cutters in milling machines and CNC machining centers.
It provides accurate centering, strong grip, and vibration-free cutting, which is essential for good surface finish and tool life.
KEY FEATURES
• High concentricity for accurate milling
• Strong gripping force (anti-slip)
• Suitable for high-speed operations
• Easy tool change
• Long service life with hardened & ground finish
MILLING COLLET – COMMON TYPES & DIMENSIONS
ER Type Milling Collet (Most Common)
|
ER Size |
Tool Holding Range (mm) |
Outer Dia (D) mm |
Length (L) mm |
|
E11 |
1 – 7 |
11 |
18 |
|
E16 |
1 – 10 |
16 |
27.5 |
|
E20 |
1 – 13 |
20 |
31.5 |
|
E25 |
2 – 16 |
25 |
34 |
|
E32 |
2 – 20 |
32 |
40 |
|
E40 |
3 – 26 |
40 |
46 |
Each ER collet clamps within ±0.5 mm of nominal size.
CONSTRUCTION DETAILS
• Material: EN47 / Spring Steel / Alloy Steel
• Heat Treatment: Hardened & tempered
• Hardness: 45 – 48 HRC
• Slots: Precision slits for uniform clamping
• Finish: ID & OD precision ground
TYPES OF MILLING COLLETS
• ER milling collet
• Solid (fixed bore) milling collet
• Weldon-type end mill collet
• Carbide-lined milling collet
• Special milling collet (as per machine)
APPLICATIONS
• Vertical & horizontal milling machines
• CNC VMC / HMC
• Slotting, profiling & contouring
• Tool rooms & production machining
• End mill & cutter holding
SUPPLY OPTIONS
• Metric & inch sizes
• Standard & precision grade
• Hardened or soft (machinable)
• Custom milling collets as per drawing
• Export-quality packaging available
What is a Milling Collet?
How do I choose the right Milling Collet?
Why is a high-quality Milling Collet important?
How do I know when my Milling Collet should be replaced?
Why should I choose Asmita Industries for Milling Collets, and how can I place an order?
